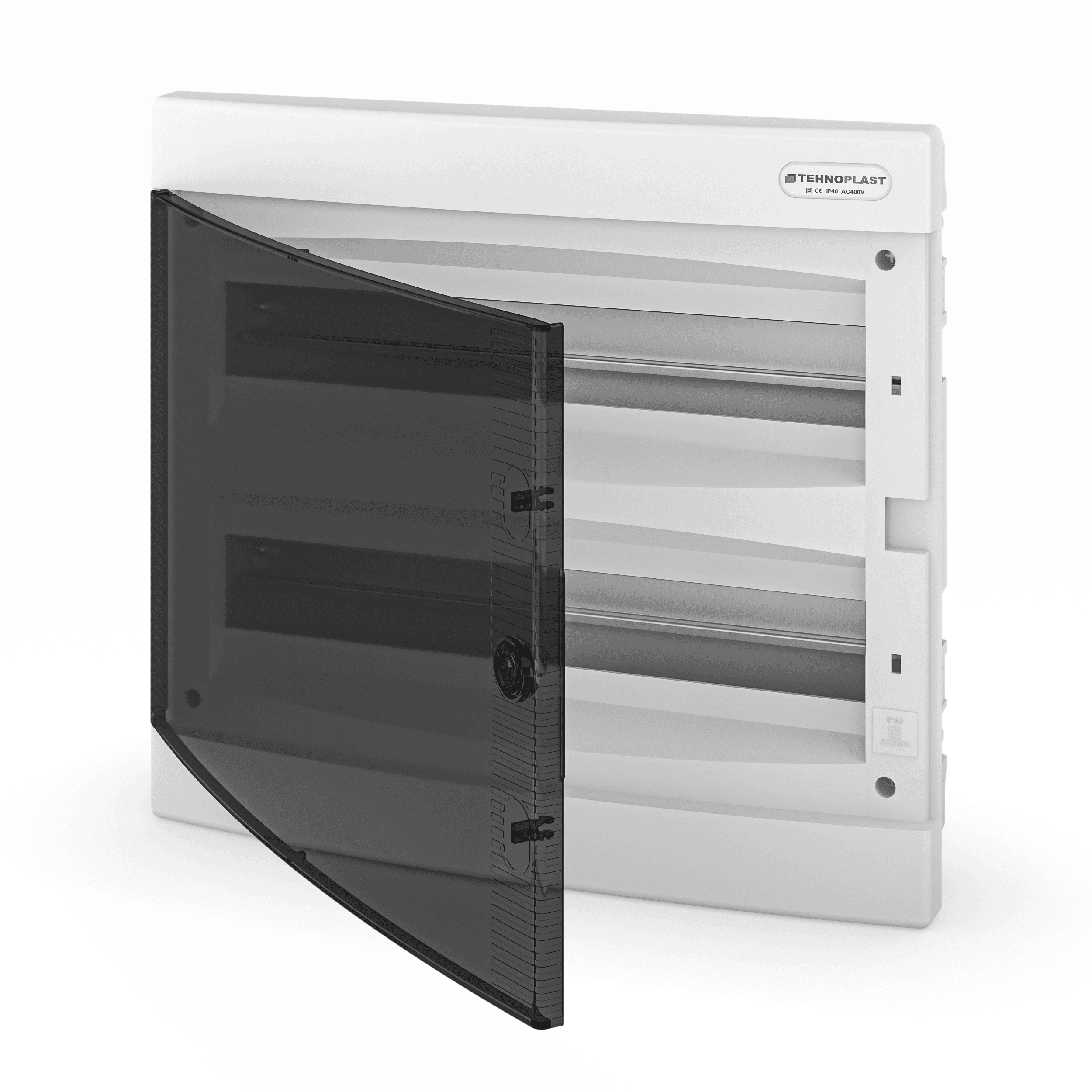

U2x18C
TypeFlush mounting
Dimensions357 x 392 x 106
Number of modules36
N, PE terminal2x15
Door color
Purpose and installation
| Indoor use |  |
| Ambient temperature | -25° C to +60° C |
Voltage / Current
| Rated voltage | AC 400 V / DC 1000 V |
| Rated current | 63 A |
Safety
| Protection against electric shock | Class II |
| Protection against external mechanical impacts | IK07 |
| Protection against ingress of solid objects and water | IP40 |
| Tested according to standard | IEC 62208 |
Capacity
| Number of modules | 36 |
| Number of DIN rails | 2 |
| N, PE terminal | 2x15 |
| Blank space cover | |
Material
| Base | PS |
| Front Mask | ABS, RAL 9003 |
| Door | MABS / ABS, Transparent / White |
| Terminal holder | Self-extinguishing material |
Heat and fire resistance
| Glow wire test of base | 650°C |
| Glow wire test of terminal holder | 960°C |

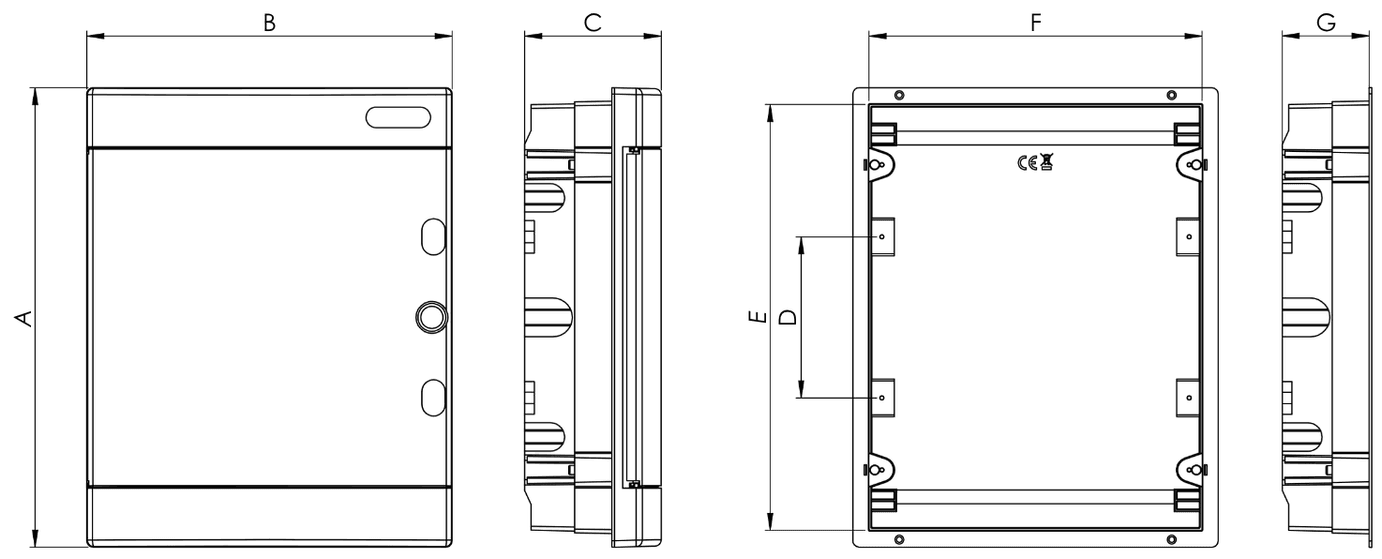

Dimensions (mm)
| A ( height ) | 357 |
| B ( width ) | 392 |
| C ( depth ) | 106 |
| D ( vertical screw spacing ) | 125 |
| E ( installation width ) | 382 |
| F ( installation height ) | 336 |
| G ( installation depth ) | 70 |
Comes with
BLANK SPACE COVER
Material: PP Color: RAL 7035 / RAL 9003
INSULATED TERMINAL, STANDARD
Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more
Optional
INSULATED TERMINAL, DOUBLE
Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more
INSULATED TERMINAL, AUSTRALIAN STANDARD
Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more
INSULATED TERMINAL, SCREWLESS
Flammability: Self-extinguish Glow wire test: 960 °C For enclosures of 12 modules or more
C SERIES ENCLOSURE LOCK
