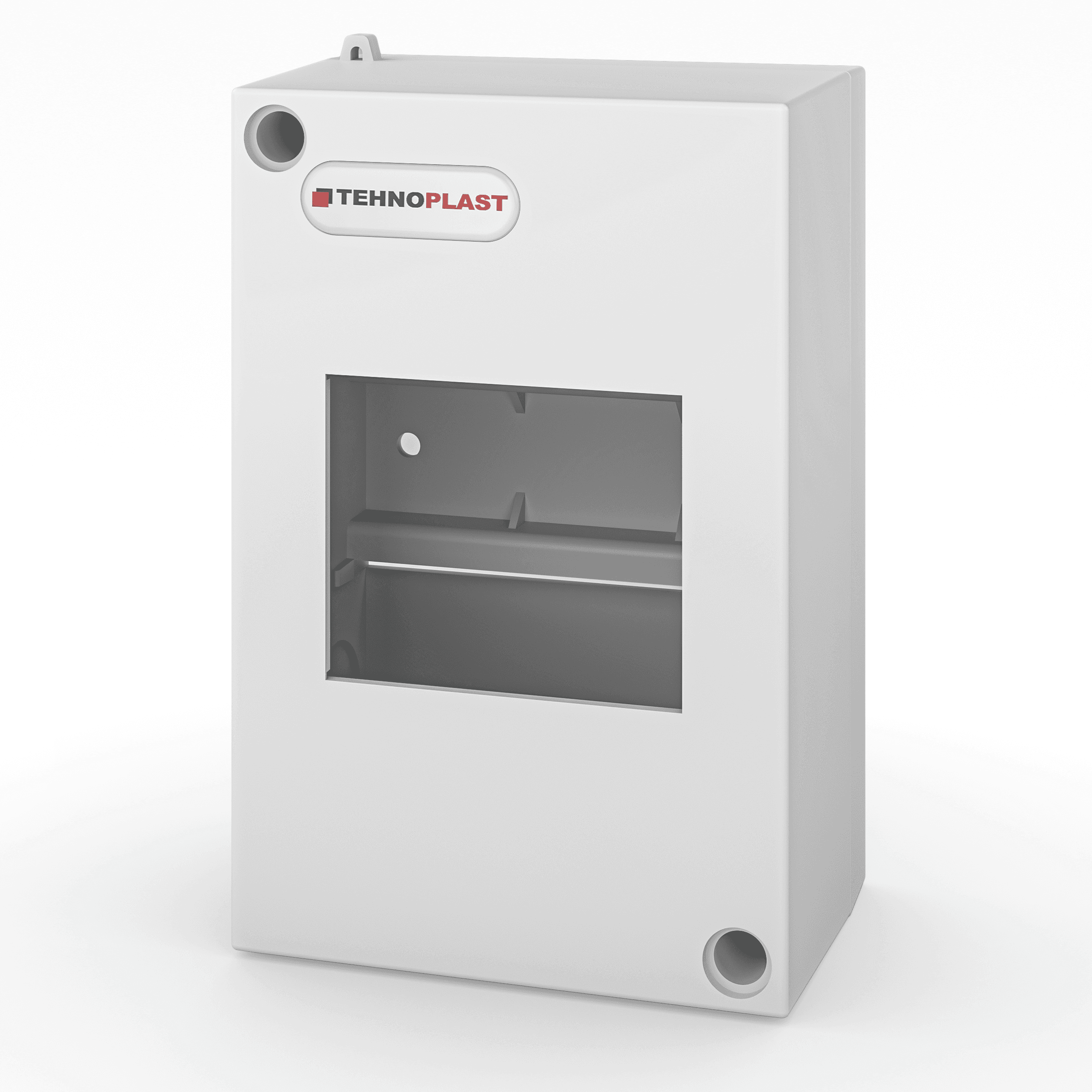

N2A
TypeSurface mounting
Dimensions130 x 87 x 58
Number of modules3+1
N, PE terminal/
Purpose and installation
| Indoor use |  |
| Outdoor |  |
| Ambient temperature | -25°C to +60°C |
Voltage / Current
| Rated voltage | AC 400 V |
| Rated current | 63 A |
Safety
| Protection against electric shock | Class II |
| Protection against external mechanical impacts | IK07 |
| Protection against ingress of solid objects and water | IP30 |
| Tested according to standard | / |
Capacity
| Number of modules | 3+1 |
| N, PE terminal | / |
| Blank space cover | |
Material
| Base | PS |
| Front Mask | ABS, RAL 9003 |
| Door | / |
| Terminal holder | Self-extinguishing material |
| UV stability | / |
Heat and fire resistance
| Glow wire test of base | 650°C |
| Glow wire test of terminal holder | 960°C |
Dimensions (mm)
| A ( height ) | 130 |
| B ( width ) | 87 |
| C ( depth ) | 58 |
| D ( horizontal screw spacing ) | 70 |
| E ( vertical screw spacing ) | 114 |
